Description

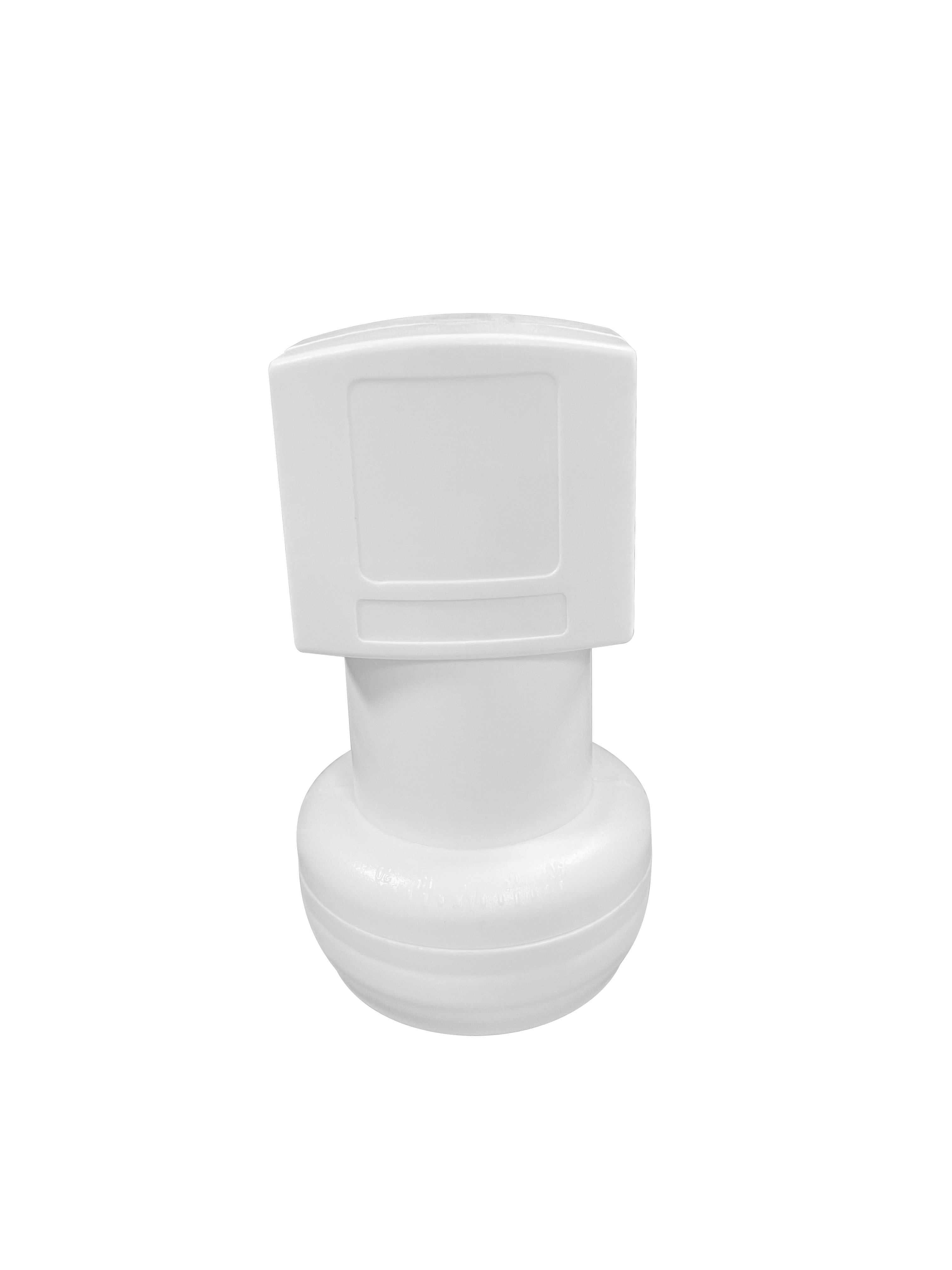

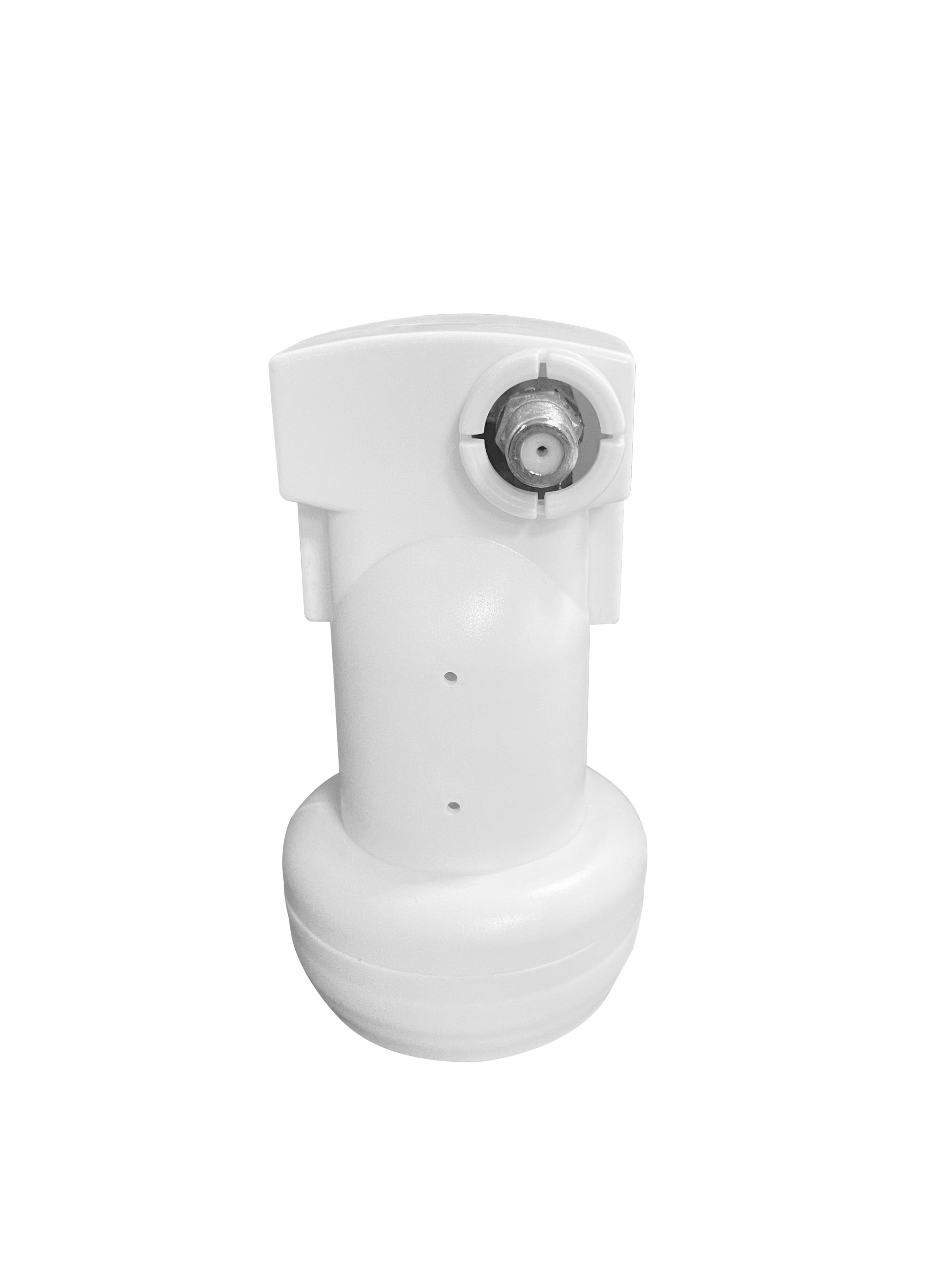

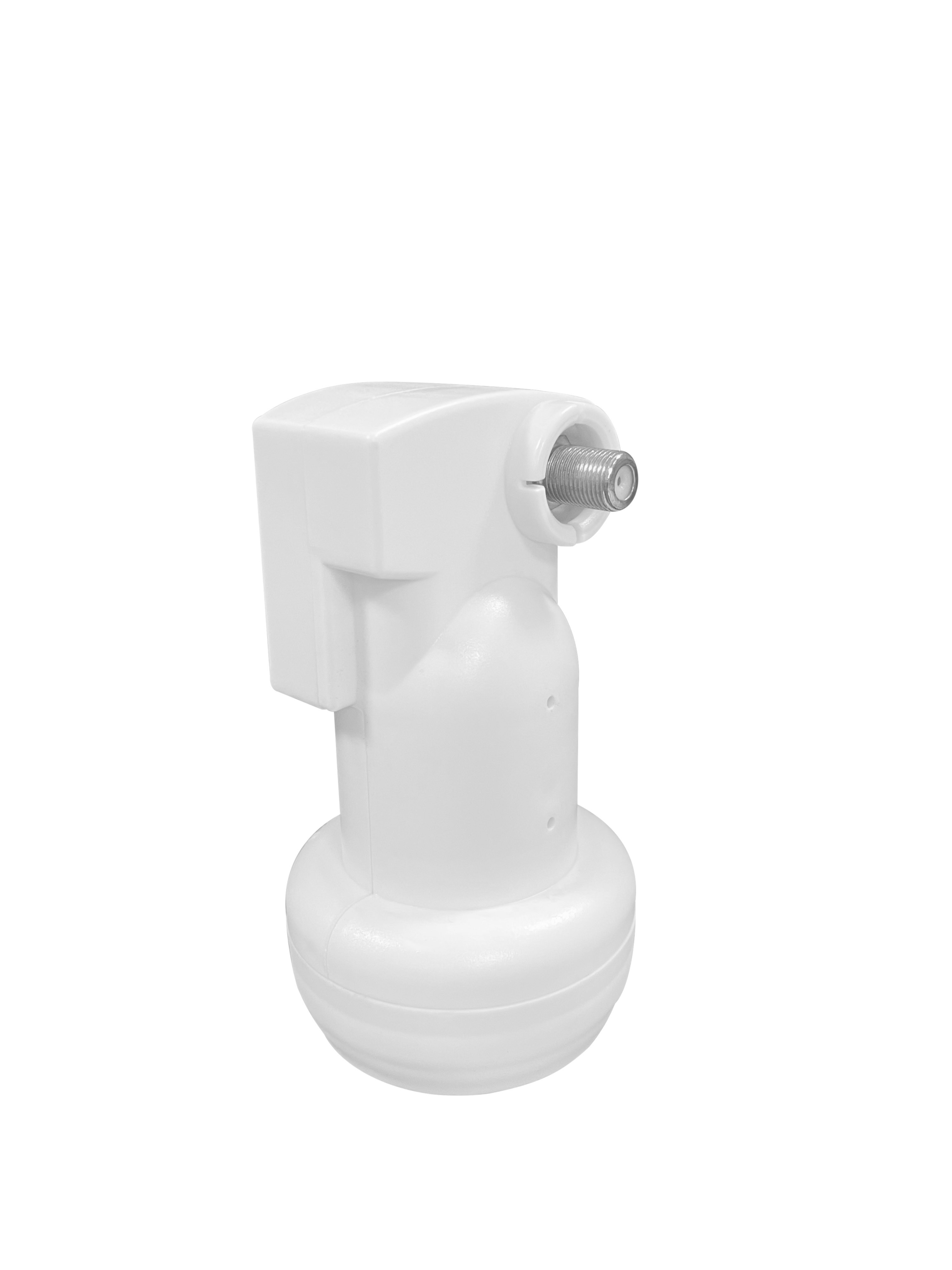

Introducing the KU CIRCULAR LNB（RUSSIA REGION）, your solution for superior signal reception. Our device is DVB-S2 (HDTV) compliant, ensuring a high-quality viewing experience. With its low power consumption and high frequency stability, this LNB offers efficient performance and reliable signal transmission. Designed for durability, it operates under both high and low temperatures and features a water-proof construction. With our KU Universal Single LNB, you can enjoy peace of mind, backed by a 5-year warranty
Main Features
Low Phase Noise,DVB-S2(HDTV)compliant
Low Noise Figure
Low Power Consumption
High Cross Polarization Isolation
High Frequency stability
High/Low Temperature
Water-Proof
5 years warranty
Specification
RF Input
Input Frequency Range:11.7~12.75GHz
Conwersion Performance
Noise Figure:0.3dB(Typ.) 1.0DB（Max）
Conversion Gain:56~63dB(Typ.）
Gain Flatness Over full Band:3~6dB P-P
Gain Flatness@Any 26MHz Bandwith:±0.5dB P-P
Gain Flatness@Any 300MHz Bandwith:±4dB P-P
lmage Rejection:37~40dB(Min.)
IF Output
Output Frequency Range:950~2000MHz
Output Connector:75ΩF Type Female
Cross Pol.lsolation:18~20dB
Local Oscillator
L.O.Frequency:10.75GHz
L.O.Frequency Stability:±1MHz(Max)@25°C
±1MHz(Max)@-30°C~+60°C
L.O.Frequency Phase Noise：-65dBc/Hz@1KHz(Max)
-83dBc/Hz@10KHz(Max)
-95dBc/Hz@10MKHz(Max)
Output Power
Polarity Switching Voltage:H:16~20v V:11~14v
D.C.Current Consumption:160~170mA
Working Condition
Operating Temperature:-35°C-+70°C
Water proof:+60°C water for 5 minutes
